Leica PRS 5-30x56 i, FDE Edition

(No reviews yet) Write a Review

Long-Range Precision in Flat Dark Earth

Color:

Tan

calendly:

https://calendly.com/leica-online-store-usa/us-en_us-ecom-virtual-online-onlinestore_us-prepurchase-product_new-so-null-null?hide_gdpr_banner=1&text_color=000000&primary_color=202020

redbanner:

New

Details

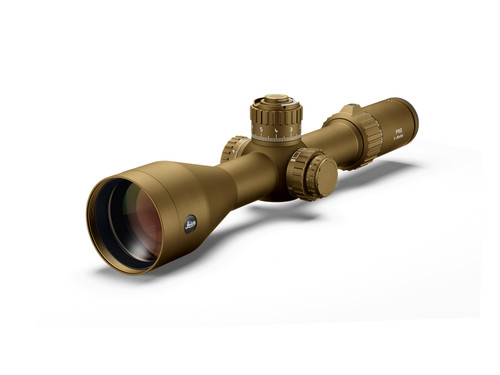

Leica PRS FDE 5-30x56i Riflescope – L-PRB Illuminated Reticle (Flat Dark Earth Limited Edition)

The long-range and competition specialist. At only 14.37" long, weighing 36.3 ounces and boasting 32 MILs of elevation travel, Leica's PRS FDE 5-30x56i is the most optically refined and competition-ready riflescope in its class and is purpose-built for precision. Its magnification range, first focal plane reticle, and legendary Leica glass mean it is equally at home dialing steel at a club match or connecting on distant game in the last minutes of shooting light.

The illuminated L-PRB "Christmas Tree" reticle was developed especially for long-range sport shooting, with a super-intuitive floating center circle, fine 0.04 MIL crosshair and a full windage and elevation hold grid. A 34 mm main tube, 56 mm objective and more than 90% light transmission deliver a brighter, more comfortable view, while an onboard zero stop adjustment tool, toolless re-zero and adjustable parallax make it ready for the line straight out of the box

The Essentials:

1st focal plane – MIL turrets and L-PRB reticle
5–30x magnification with 6x zoom ratio
32 MILs of elevation travel
Compact and light: 14.37" long, 36.3 oz
34 mm main tube
56 mm objective for a brighter, more comfortable view
Illuminated L-PRB "Christmas Tree" reticle (dot / scale illumination)
Onboard zero stop adjustment tool and toolless re-zero
Parallax correction, 20 m to infinity
Fully multi-coated ED glass with >90% light transmission
AquaDura® lens coating
Waterproof to 4 m (13 ft), fog proof (+12,000 ft), 1,500 g impact tested
Thermal compatible
Limited Edition Flat Dark Earth (FDE) finish

at a glance

1st focal plane – MIL turrets
90% light transmission
32 MILs of elevation travel
Limited Edition Flat Dark Earth finish

in the box

Leica PRS FDE 5-30x56i Riflescope
Sunshade
Scope caps
Tools
Throw lever
Battery
Cleaning tissue

Specifications

Leica

LEICA PRS 5 - 30 x 56 i

Technical Data

Designation	Leica PRS 5 - 30 x 56 i
Device type	Riflescope
Order no.	51100 (black, reticle L-4a) 51200 (black, reticle L-Ballistic) 51300 (black, reticle PRB) 51301 (flat dark earth (FDE), reticle PRB)
Scope of delivery	for PRS black version: Sunshade (black), tool, throw lever, cleaning tissue, battery for PRS Edition FDE: Sunshade (FDE), tool, throw lever, Tenebraex flip caps (FDE), cleaning tissue, battery, Leica sticker
Magnification	5 – 30 x
Front lens diameter	56 mm
Zoom	6 x
Exit pupil	9 - 2 mm
Field of view at 100 m (min. up to max. magnification)	9.0 yds up to 1.42 yds / 8.2 m up to 1.3 m
Eye relief	> 90 mm
Parallax-free	adjustable, 21.9 yds / 20 m to infinity
Diopter compensation	–3/+1 dpt
Lens coating	AquaDura® coating
Light transmission	> 90 %
Focal plane reticle	1st focal plane
Available reticles	L-4a, L-Ballistic, L-PRB
Reticle adjustment range height / side (100 m)	320/180 cm, 32/18 Mil
Impact point correction (100 m)	0.1 Mil = 0.1 mrad = 1 cm/100 m per click
Reticle illumination	dot / scale
Light levels	10
Automatic switch-off	4 h
Automatic switch-on	—

Leica

LEICA PRS 5 - 30 x 56 i

Technical Data

Designation	Leica PRS 5 - 30 x 56 i
Central tube diameter	34 mm
Mounting option	34 mm rings
Front lens filter thread	M 62 x 0.6 mm
Battery	1 x CR 2032
Waterproof	up to 13.1 ft / 4 m water depth (nitrogen-filled)
Length	14.37 inch / 365 mm
Weight	36.3 oz / 1030 g
Accessories
Riflescope cover Size XXL for 50 and 56 mm, pitch black	59059
Riflescope cover Size XXL for 50 and 56 mm, juicy orange	59060
Riflescope cover Size XXL for 50 and 56 mm, olive green	59061
Flip Caps, 56 mm, black	59066

Leica

LEICA PRS 5 - 30 x 56 i

Dimensions

Leica PRS 5 - 30 x 56 i
A	365 mm
B	90 mm
C	168.5 mm
D	40.5 mm
E	98 mm
F	162 mm
G	46 mm
H	Ø 65 mm
I	Ø 34 mm
J	55 mm
K	Ø 44 mm
L	68 mm

Owner Benefits

Delivery:
PRS 5-30x56i Edition FDE, Sunshade (FDE), tools, throw lever, Tenebraex flip caps (FDE), battery, and cleaning tissue.

Limited Warranty:
All Leica Sport Optic products bought from an authorized North American dealer since Jan 1, 2021 now feature a fully transferable 10-year Passport Protection Plan plus a 30-year Manufacturer’s Warranty. Both aspects of Leica’s commitment to you compromise the following:

Fully Transferable
No Warranty Card Required
No Receipt Required
No Charge

Please visit our dedicated Warranty Program page for specific rules and conditions.

Leica Warranty Program

10 Year Passport Protection Plan
The Leica Passport Protection Plan is completely free and includes a fully transferrable no-questions, no-fault, 10-year accidental damage coverage plan in addition to a 30-year Manufacturer's Warranty. During the first 10-years, Leica will repair or replace any optical binoculars, rangefinder, or spotting scope in the event it is damaged, at no cost to the customer. This is only valid if the unit is purchased within North America, and is sent in to the US repair facility for service.

30 Year Manufacturer’s Warranty:
Moreover, all optical Sport Optics products include a comprehensive 30-year Manufacturer's Warranty, also at no charge. If following the 10-year no-fault coverage plan and a product is determined to have a defect with the optical system, Leica will simply repair or replace it. This excludes impact and water damage. Program valid from the date of purchase from an authorized North American Leica dealer.
Non-optical items such as accessories are warrantied for two years from date of purchase.
