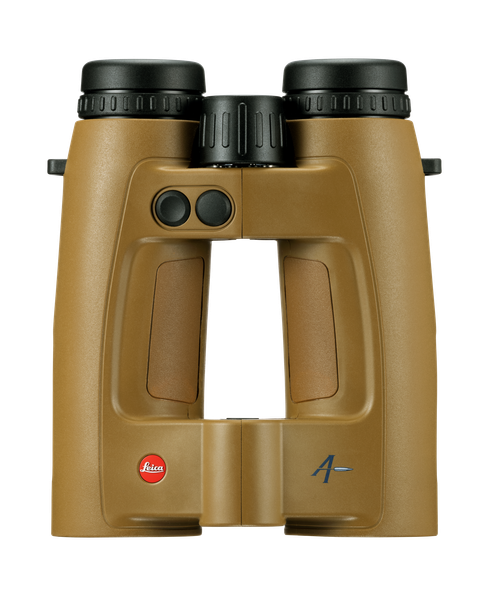

Leica Geovid Max 10x42

The ultimate high-performance hunting binoculars with innovative technology

The Leica Geovid Max 10x42 was developed for hunters and precision shooters who need more than just a measured value at long distances. It combines brilliant observation, highly precise rangefinding, professional ballistics and precise terrain navigation in powerful hunting binoculars.


The exceptionally bright Active Matrix microLED display remains clearly legible even in strong sunlight. It can be individually configured via the Leica Ballistics App so that only the information actually required in the respective situation appears in the field of view. Distance, ballistic correction, shot probability, wind data and compass information are therefore immediately available without additional distraction.


The highly precise laser measuring system determines distances up to around 2,900 metres in standard measuring mode in just 0.3 seconds. For greater distances, Extended Mode increases the range to up to around 7,500 metres for retroreflective targets. The “First”, “Best” and “Last” target modes adapt the measuring logic to isolated, nearby or partially obscured targets, ensuring reliable results even in demanding situations.


Applied Ballistics Professional® calculates precise correction values up to the maximum measuring range. Air pressure, temperature and angle of inclination are automatically recorded and included in the calculation. Shot Probability Analysis additionally displays the expected probability of a hit as a percentage, providing a sound basis for a responsible shooting decision.


As part of the Leica Ecosystem, the Geovid Max connects seamlessly with the Leica Ballistics App, compatible Kestrel® devices, Garmin® watches and BaseMap® Pro. Leica ProTrack guides the user precisely to a previously measured point in the terrain. This creates a fully connected system for observation, rangefinding, ballistics and navigation, providing a better overview, shorter decision paths and full concentration on the decisive moment.


The Leica 10x42 high-performance optics with patented Perger-Porro prism system, 90 percent light transmission and high edge-to-edge sharpness enable reliable target identification and detail recognition, even in difficult lighting conditions. The distinctive Flat Dark Earth colour identifies the Geovid Max as the high-end model in the Leica Geovid family.

The essentials:

  • Ultimate high-performance hunting binoculars with Leica 10x42 premium optics and rangefinder in Flat Dark Earth
  • Exceptionally bright, individually configurable Active Matrix microLED display with 640 × 480 pixels
  • Fast, highly precise laser rangefinding up to 2,900 metres (just 0.3 seconds in standard measuring mode), maximum range up to 7,500 metres
  • Equipped with Applied Ballistics Professional® with Shot Probability Analysis, wind correction and integrated environmental sensors
  • Three intelligent target modes, “First”, “Best” and “Last”, for a wide range of hunting and measuring situations
  • Full integration into the Leica Ecosystem with Leica Ballistics App, BaseMap®, Kestrel®, Garmin® and Leica ProTrack (LPT™) for precise navigation to measured points in the terrain

At a glance

  • 10x42 premium optics
  • Highly precise laser rangefinding
  • Equipped with Applied Ballistics Professional®
General
Designation Leica Geovid Max 10x42
Device type Rangefinder
Order no. 40 831
Finish Flat Dark Earth
Scope of delivery Contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery
Optical system
Magnification 10x
Front lens diameter 42 mm
Exit pupil 4.2 mm
Twilight factor 20.5
Field of view at 1,000 yds / 1,000 m 339 ft / 113 m ±3%
Field of view for spectacle wearers 339 ft / 113 m ±3%
Eye relief 16 mm
Objective angle of view 6.5°
Close distance approx. 16 ft / 5 m
Adjustable interpupillary distance 56 to 74 mm
Light transmission 90%
Diopter compensation ±4 dpt.
Eyepiece for eyeglass wearers yes
Eyecups yes, rotary sliding sleeve, detachable, with 4 click-stops
Prism system Perger-Porro system
Lens coating HDC® multilayer coating, AquaDura® coating
Focusing Internal focusing via central drive
Distance measurement
Range — retro-reflective targets 10 up to approx. 8,200 yds / 7,500 m
Range — highly reflective targets 10 up to approx. 7,300 yds / 6,675 m
Range — trees 10 up to approx. 4,600 yds / 4,200 m
Range — deer 10 up to approx. 2,900 yds / 2,650 m
Equivalent horizontal range (EHR) 10 up to approx. 8,200 yds / 7,500 m
Measuring accuracy ±0.5 yds at 10–200 yds / ±0.5 m at 10–183 m ±1.0 yds at 200–1,000 yds / ±1.0 m at 183–915 m ±0.15% above 1,000 yds / ±0.15% above 915 m
Measuring time Extended mode OFF: 0.3 sec. Extended mode ON: 1.4 sec. Extended mode AUTO: 0.3 or 1.4 sec. Scanning mode: 0.25 sec.
Measuring modes Scanning mode Single measurement — Extended mode OFF Single measurement — Extended mode ON Single measurement — Extended mode AUTO
Target modes First / Last / Best
Switchover meter/yards yes
Ballistics
Ballistic function yes
Applied Ballistics® Professional on-board yes
On-board wind correction yes
Output “Equivalent horizontal range” (EHR) yes
Output “Unit correction” for elevation and windage yes
Output “Click correction” for elevation and windage yes
Output “Holdover” for elevation and windage yes
Shot Probability Analysis (SPA/WEZ) yes
Connectivity and display
Bluetooth® interface yes
Connection to Leica Ballistics App yes
Customized ballistic profiles yes
BaseMap® yes
Kestrel® / Garmin® connection yes
GPS guide LPT™ (Leica ProTrack) yes
Display Active-Matrix MicroLED Display (640 × 480)
Sensors
Barometric pressure sensor yes
Temperature sensor yes
Temperature measurement yes
Inclination sensor yes
Compass yes
Laser, power and construction
Laser Eye-safe invisible laser according to EN and FDA class 1
Laser beam divergence 1.8 × 0.8 mrad
Battery 1 × 3 V / Lithium-type CR2
Battery lifetime approx. 2,000 measurements at 68°F / 20°C
Watertightness to a depth of 16 ft / 5 m
Housing Magnesium, nitrogen-filled
Dimensions (W × H × D) 4.9 × 6.9 × 2.8 in / 125 × 174 × 70 mm
Weight approx. 37 oz / 1,040 g (without battery)
Accessories
Winged eyecups 42 006
Floating carrying strap 42 163
Tripod adapter 42 220
Ollin Snapshot Geovid Adapter 96 475

Delivery:
Leica Geovid Max 10x42, contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery, and Quick Start guide.
